HTRF ERK P-T202/Y204 KIT-Revvity
Order
Cat.No Name Size

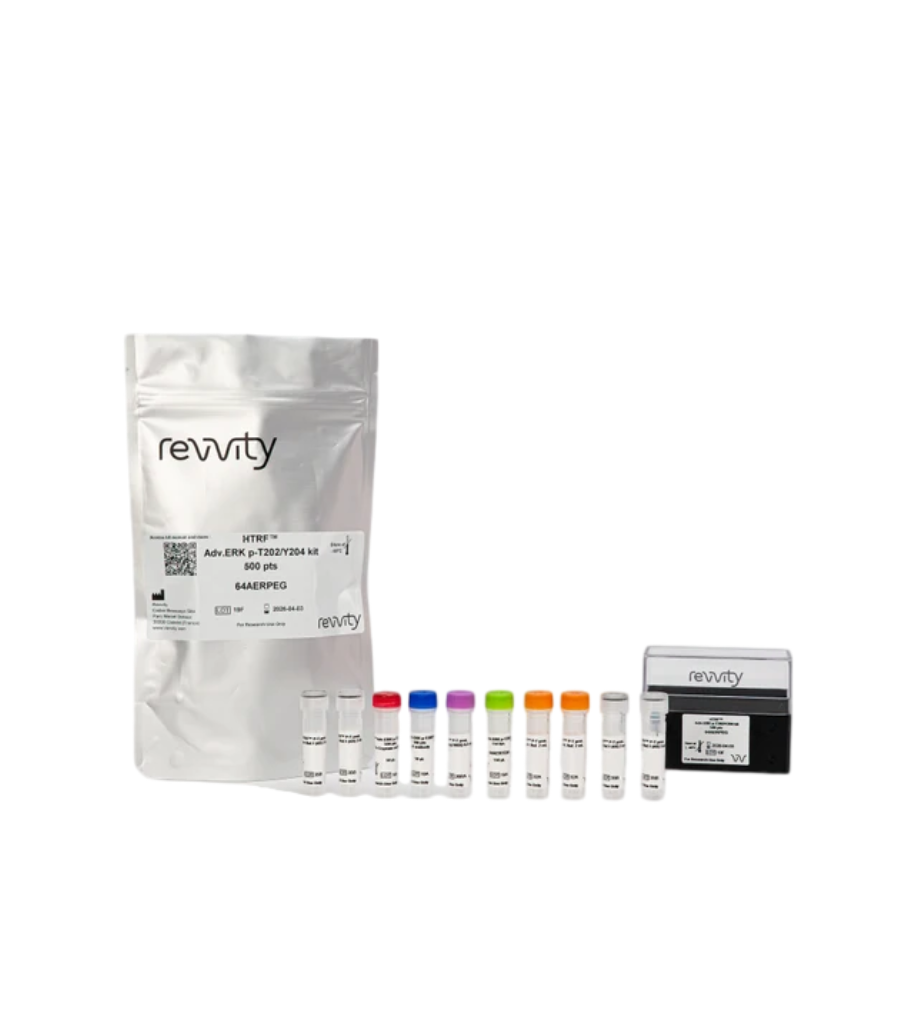

64ERKPEG HTRF ERK P-T202/Y204 KIT 500 PTS
64ERKPEH HTRF ERK P-T202/Y204 KIT 10K PTS



  • Product overview
  • Brand introduction
  • Q&A
  • Data download

Phospho-ERK assay kits are designed for the robust quantification of ERK modulation, phosphorylated on Thr202/Tyr204, for GPCR and RTK targeted screening as a MAPK Pathway readout. The simple mix-and-read protocol eliminates all wash steps for faster analysis and high quality output.

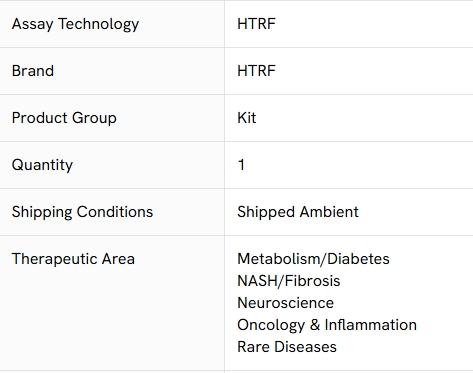

Specifications





How it works

Phospho-ERK (Thr202/Tyr204) assay principle

The Phospho-ERK (Thr202/Tyr204) assay measures ERK when phosphorylated at Thr202/Tyr204. Contrary to Western Blot, the assay is entirely plate-based and does not require gels, electrophoresis or transfer. The Phospho-ERK (Thr202/Tyr204) assay uses 2 labeled antibodies: one with a donor fluorophore, the other one with an acceptor. The first antibody is selected for its specific binding to the phosphorylated motif on the protein, the second for its ability to recognize the protein independent of its phosphorylation state. Protein phosphorylation enables an immune-complex formation involving both labeled antibodies and which brings the donor fluorophore into close proximity to the acceptor, thereby generating a FRET signal. Its intensity is directly proportional to the concentration of phosphorylated protein present in the sample, and provides a means of assessing the protein’s phosphorylation state under a no-wash assay format.



phospho-erk-thr202-tyr204-assay-principle





Phospho-ERK 2-plate assay protocol

The 2 plate protocol involves culturing cells in a 96-well plate before lysis then transferring lysates to a 384-well low volume detection plate before adding Phospho-ERK HTRF detection reagents. This protocol enables the cells' viability and confluence to be monitored.



phospho-erk-thr202-tyr204-assay-principle





Phospho-ERK 1-plate assay protocol

Detection of Phosphorylated ERK with HTRF reagents can be performed in a single plate used for culturing, stimulation and lysis. No washing steps are required. This HTS designed protocol enables miniaturization while maintaining robust HTRF quality.



phospho-erk-thr202-tyr204-assay-principle





Simplified pathway

MAPK/ERK cell signaling

The MAPK/ERK signaling cascade is activated by a wide variety of receptors involved in growth and differentiation. The core signal transduction cascade elicits regulation of numerous cellular processes including adhesion, migration, apoptosis, differentiation and metabolism. MEK1/2 catalyze the phosphorylation of ERK1/2 at Tyr204 and Thr202. In response, ERK phosphorylates hundreds of cytoplasmic and nuclear substrates. The wide complexity and diversity of MAPK signaling makes ERK a key regulator and major signaling node in biology.



phospho-erk-thr202-tyr204-assay-principle
